ARMOURED CONDUIT – BINDER WIRE CONDUITS
The armoured conduit is a special release of the standard long lay conduit.
It is made of an inner liner, a round wires mesh and a covering layer of plastic which protects the push pull cable from environmental influences. It adds a binder wire for structural integrity and a tighter minimum bend radius than other casings between the round wires mesh and the covering.
Technical details of VLD - for inner core Ø2.7mm
VLD binder wire conduit
Armoured conduit for inner core 2.7 mm
Technical details of LD - for inner core Ø3.35 mm
LD binder wire conduit
Armoured conduit for inner core 3,35 mm
Technical details of MD - for inner core Ø4.7mm
MD binder wire conduit
Armoured conduit for inner core 4,7 mm
Technical details of HD - for inner core Ø6.0mm
HD binder wire conduit
Armoured conduit for inner core 6,0 mm
VLD - for inner core Ø2.7mm
| Label | Value | Value Additional |
|---|---|---|
| SKU | 7G313590 | |
| Armoured cable SKU | 7C311548 | |
| For inner core | Ø 2.7 mm | |
| Construction | 1+17x1,00-2.5x0.4-8.7 | |
| Linear ID (mm) (1) | Ø 3.1 | |
| Steel wires diameter (mm) (2) | Ø 1 | |
| Outside diameter OD (mm) (3) | Ø 8.7 | |
| Liner material | HDPE | |
| Covering Material | LDPE |
LD - for inner core Ø3.35 mm
| Label | Value | Value Additional |
|---|---|---|
| SKU | 7G313558 | |
| Armoured cable SKU | 7C310955 | |
| For inner core | Ø 3.35 mm | |
| Construction | 1+16x1,20-2.0x1,25-13.4 | |
| Linear ID (mm) (1) | Ø 3.8 | |
| Steel wires diameter (mm) (2) | Ø 1.20 | |
| Outside diameter OD (mm) (3) | Ø 13.4 | |
| Liner material | HDPE | |
| Covernig material | LDPE |
MD - for inner core Ø4.7mm
| Label | Value | Value Additional |
|---|---|---|
| SKU | 7G313593 | |
| Armoured cable SKU | 7C313251 | |
| For inner core | Ø 4.7 | |
| Construction | 1+21x1,20-3.5x1.15-15.2 | |
| Linear ID (mm) (1) | Ø 5.2 | |
| Steel wires diameter (mm) (2) | Ø 1.2 | |
| Outside diameter OD (mm) (3) | Ø 15.2 | |
| Liner material | HDPE | |
| Covering Material | LDPE |
HD - for inner core Ø6.0mm
| Label | Value | Value Additional |
|---|---|---|
| SKU | 7G313594 | |
| Armoured cable SKU | 7C313621 | |
| For inner core | Ø 6.0 mm | |
| Construction | 1+26x1.20-3.5x1.15-17.3 | |
| Linear ID (mm) (1) | Ø 6.7 mm | |
| Steel wires diameter (mm) (2) | Ø 1.2 mm | |
| Outside diameter OD (mm) (3) | Ø 17.3 mm | |
| Liner material | HDPE | |
| Covering Material | LDPE |

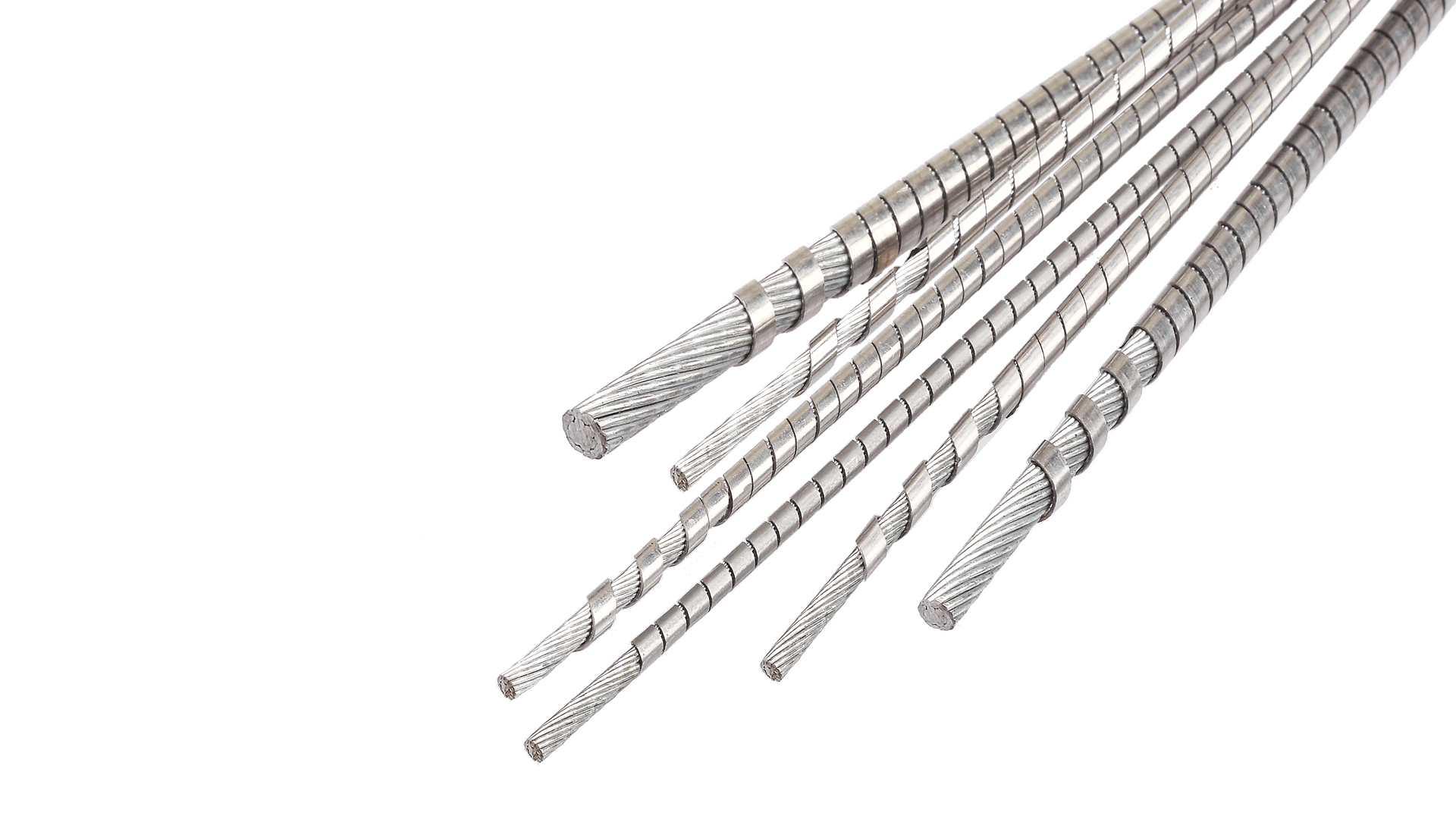

ORDER GUIDE - Armoured cables and related armoured conduits
| ARMOURED CABLE |
OUTSIDE DIAMETER |
ROPE CONSTRUCTION |
ROPE |
FLAT WIRE |
FLAT WIRE |
ARMOURED CONDUIT |
ARMOURED CONDUIT |
|---|---|---|---|---|---|---|---|
|
7C311548 |
2.7-2.73 |
Flexible metal core |
2.0 |
2,3x0.45 |
SS Aisi 430 |
VLD |
7G313590 |
|
7C310955 |
3.35-3.38 |
Flexible metal core |
2.5 |
2.3x0.5 |
SS Aisi 430 |
LD |
7G313558 |
|
7C313251 |
4.58-4.65 |
Flexible metal core |
4.0 |
2,5x0.4 |
SS Aisi 430 |
MD |
7G313593 |
|
7C313621 |
5.97-6.03 |
Flexible metal core |
5.35 |
2,5x0.4 |
SS Aisi 430 |
HD |
7G313594 |
ORDER GUIDE - Armoured cables and related armoured conduits
| Model | Part Number | Description |
|---|---|---|
| VLD - for inner core Ø 2.7 mm | 7G313590 | Green binder wire conduit Ø 3.1 x 8.7 |
| LD - for inner core Ø 3.35 mm | 7G313558 | Green binder wire conduit Ø 3.8 x 13.4 |
| MD - for inner core Ø 4.7 mm | 7G313593 | Green binder wire conduit Ø 5.2 x 15.2 |
| HD - for inner core Ø 6.0 mm | 7G313594 | Green binder wire conduit Ø 6.7 x 17.3 |
