SILOS TEMPERATURE MONITORING SYSTEM PROTECTION TUBES

SILOS TEMPERATURE MONITORING SYSTEM PROTECTION TUBES

Silos temperature monitoring system protection tubes of Industria di Leivi are used in silos and warehouses for products storage

Select your version

SILOS TEMPERATURE MONITORING SYSTEM PROTECTION TUBES

Silos temperature monitoring system protection tubes of Industria di Leivi are used in silos and warehouses for products storage, since the long lying of them caused the fermentation and consequently the increase of temperature; the constant monitoring of the temperature permits to warn the first symptomns and preventing many damages, losses, recycle of product and reducing the storage costs.

Great tensile strenght: above 5.000 Kg
Round shape for the minimum friction in the silo
Durable antistatic construction for high loads and certification for ATEX Zone 20/21/22.

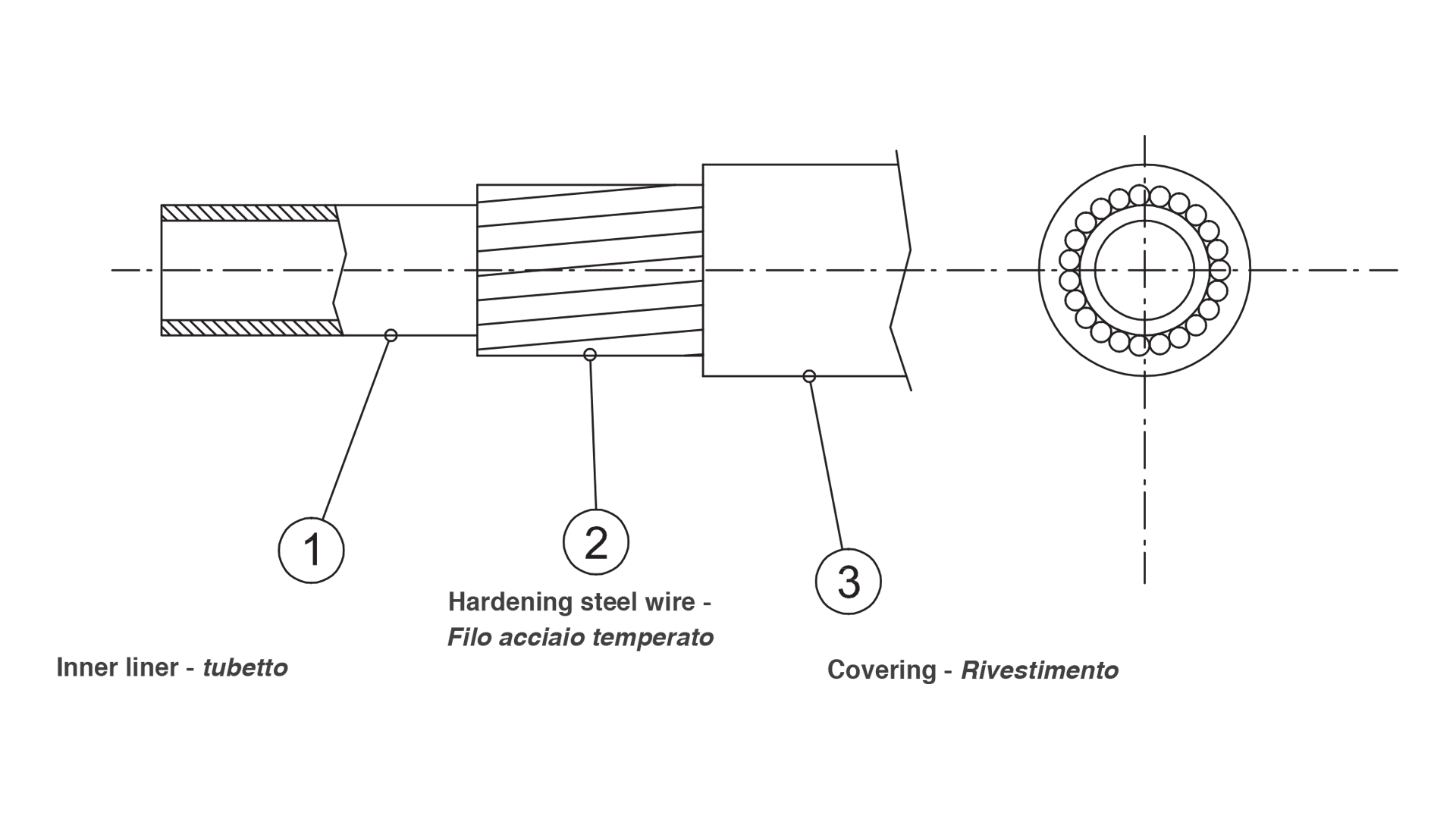

Antistatic or dissipative covering
Hardened steel wires
Inner liner

Label Value Value Additional
Great tensile strenght above 5000 kg

ø 5.1 x 9.9

Label Value Value Additional
Great tensile strenght above 5000 kg
SKU 7G113578
Diameter Ø 5.1x9.9
Continuous operating temperature 55° C
Peak temperature (10h) 70° C
Inner liner diameter (1) Ø 5.2x6.6
Hardening steel wire (2) Ø 0.8 - left lay
Inner liner material PEHD
Materiale rivestimento (3) Black high density polyethylene electrically conductive

ø 8.9 x 16.2

Label Value Value Additional
Great tensile strenght above 5000 kg
SKU 7G113625
Diameter Ø 8.9x16.2
Continuous operating temperature -20°C - +80°C
Peak temperature (10h) 110°C
Inner liner diameter (1) Ø 9.1x10.9
Bright steel wire (2) Ø 1.2 - left lay
Inner liner material PEHD
Materiale rivestimento (3) Black high density polyethylene electrically conductive

Model Part Number Description
13578 7G113578 ø 5.1 x 9.9 Silos temperature monitoring system protection tube
13625 7G113625 ø 8.9 x 16.2 Silos temperature monitoring system protection tube
Model Part Number Description
13578 7G113578 ø 5.1 x 9.9 Silos temperature monitoring system protection tube
13625 7G113625 ø 8.9 x 16.2 Silos temperature monitoring system protection tube
Model Part Number Description
13578 7G113578 ø 5.1 x 9.9 Silos temperature monitoring system protection tube
13625 7G113625 ø 8.9 x 16.2 Silos temperature monitoring system protection tube
Clicking on the items will open a separate tab in the browser
