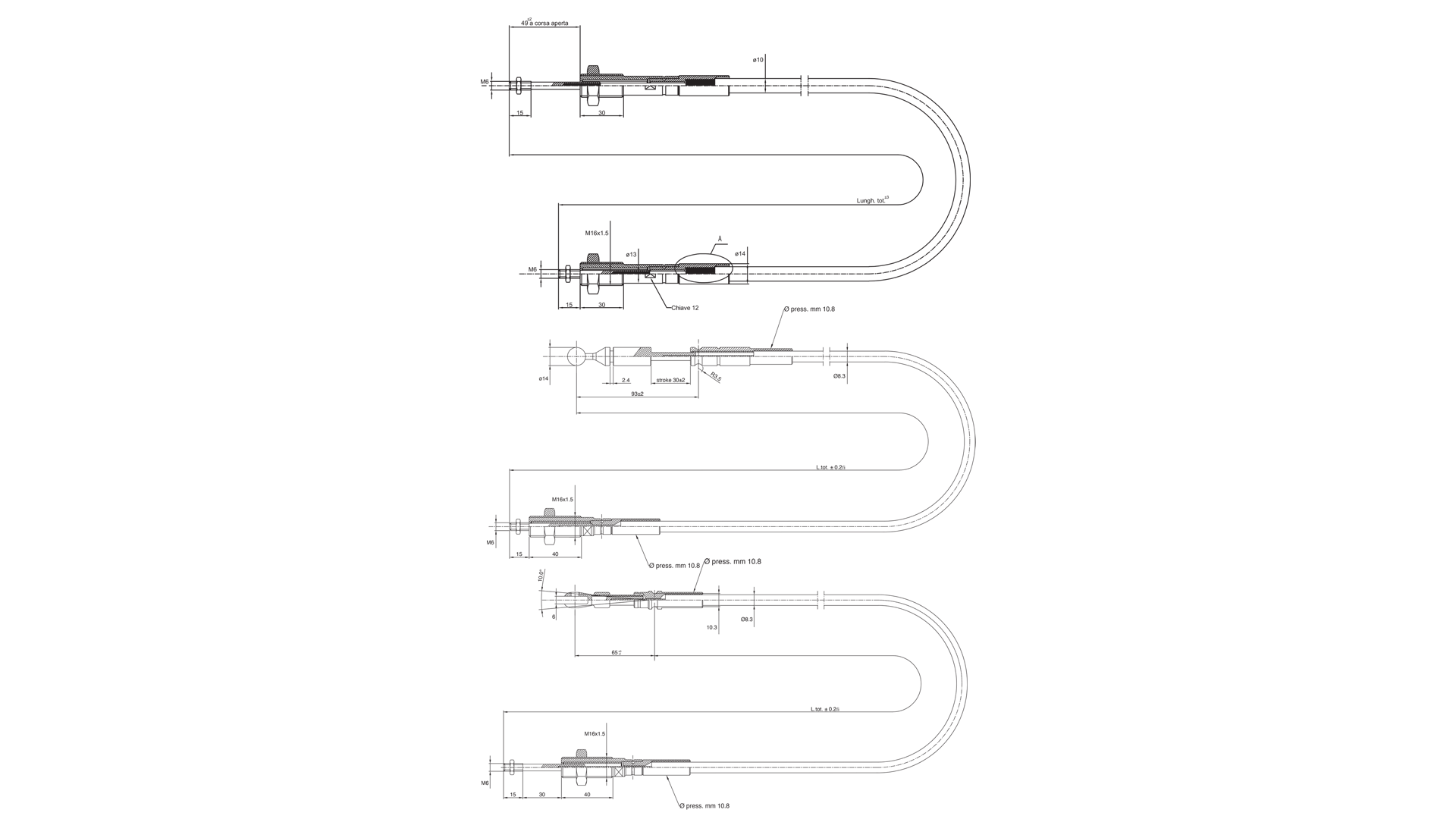

FRONT LOADER MECHANICAL JOYSTICK PUSH PULL CABLES
Technical details of 452C
452C – FRONT LOADER MECHANICAL JOYSTICK PUSH PULL CABLE
Technical details of 709D
709D – FRONT LOADER MECHANICAL JOYSTICK PUSH PULL CABLE
Technical details of 713D
713D – FRONT LOADER MECHANICAL JOYSTICK PUSH PULL CABLE
452C
| Label | Value | Value Additional |
|---|---|---|
| SKU | 452C | |
| Stroke | 34±2 mm | |
| Tear out force of pressed cable end terminals on the cable | 4000 N | |
| Tear out force of pressed conduit end terminals on the conduit | 3000 N | |
| Admissible maximum load to traction | 880 N | |
| Admissible maximum load to compression | 150 N | |
| Minimum bend radius | 200 mm | |
| Environmental temperature | from -40°C to +80°C |
709D
| Label | Value | Value Additional |
|---|---|---|
| SKU | 13709 | |
| Stroke | 30 | |
| Tear out force of pressed cable end terminals on the cable | 2500 N | |
| Tear out force of pressed conduit end terminals on the conduit | 2000 N | |
| Admissible maximum load to traction | 450 N | |
| Admissible maximum load to compression | 280 N | |
| Minimum bend radius | 200 mm | |
| Environmental temperature | da -40°C a +80°C |
713D
| Label | Value | Value Additional |
|---|---|---|
| SKU | 713D | |
| Stroke | 30 | |
| Tear out force of pressed cable end terminals on the cable | 2500 N | |
| Tear out force of pressed conduit end terminals on the conduit | 2000 N | |
| Admissible maximum load to traction | 450 N | |
| Admissible maximum load to compression | 280 N | |
| Minimum bend radius | 150 mm | |
| Environmental temperature | da -40°C a +80°C |
